Schema migrations with Neon Postgres and Drizzle ORM

Drizzle ORM is a TypeScript-first ORM that provides a simple way to define database schemas, execute queries, and manage migrations. When combined with Neon's branching capabilities, you can establish a reliable workflow for developing, testing, and deploying schema changes.

This guide will walk you through:

1. Setting up your environment to use Neon branches with Drizzle.
2. (Optional) Introspecting an existing database schema into Drizzle.
3. Defining your schema and generating migration files using Drizzle.
4. Two distinct methods for applying migrations: via drizzle-kit migrate and a custom migration script.
5. Applying migrations to your development branch for testing.
6. Promoting those migrations to your production branch.

Prerequisites

Before you begin, ensure you have the following:

• A Neon account. If you do not have one, sign up at console.neon.tech/signup.
• A Neon project. Newly created projects come with production (default) and development branches.
• Node.js and npm installed on your local machine.
• Neon CLI (optional but recommended for managing branches and connection strings quickly from the terminal).

Setting up your Neon Project and Branches

Initialize your Neon Project

If you haven't already, log in to the Neon Console and create a new project. By default, new Neon projects are created with two branches:

• production: Your primary database branch.
• development: A branch intended for development and testing

Retrieve Connection strings

You'll need separate connection strings for your production and development branches.

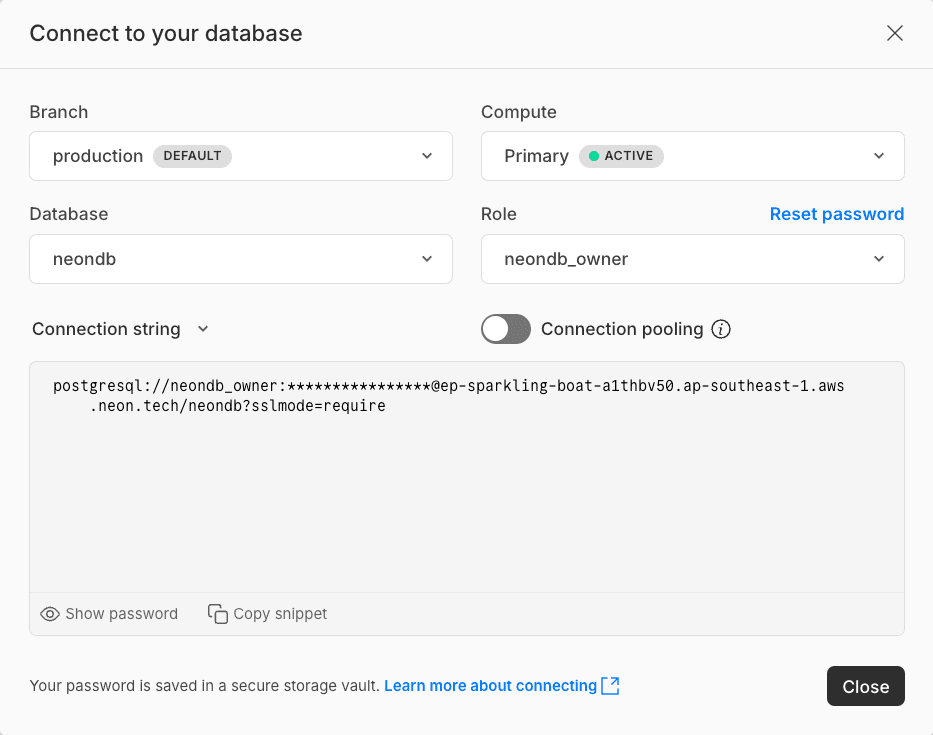

In the Neon Console:

1. Navigate to your project's Dashboard.
2. Click the Connect button to open the connection details modal.
3. Select the production branch from the dropdown for the Branch field.
4. Additionally, chose the Database and Role you want to connect with.
5. Copy the direct connection string by turning off the Connection pooling toggle. This will provide you with a direct connection string.
6. Repeat steps 2-5 for your development branch.

Your connection strings will look similar to this:

# Development branch connection string
postgresql://[database_user]:[user_password]@ep-[dev-endpoint-id].[region].[aws/azure].neon.tech/neondb?sslmode=require

# Production branch connection string
postgresql://[database_user]:[user_password]@ep-[prod-endpoint-id].[region].[aws/azure].neon.tech/neondb?sslmode=require

Keep these connection strings handy.

Initial Project and Drizzle setup

This guide assumes you have an existing Node.js project with Drizzle ORM already configured.

If you are new to Drizzle ORM or need to set it up with Neon, please first follow the official Drizzle ORM + Neon Quickstart guide.

Your project should have the following dependencies installed:

• drizzle-orm, drizzle-kit, and @neondatabase/serverless (Neon HTTP driver).

• tsx and dotenv installed as development dependencies (npm install -D tsx dotenv).

• A schema.ts file for your Drizzle schema definitions.

• A .env file in your project root containing your Neon branch connection strings:

  DATABASE_URL_DEVELOPMENT=YOUR_DEVELOPMENT_NEON_DIRECT_CONNECTION_STRING
  DATABASE_URL_PRODUCTION=YOUR_PRODUCTION_NEON_DIRECT_CONNECTION_STRING

  Replace the placeholder values with your actual Neon direct connection strings which you obtained in the Retrieve Connection strings section.

Syncing Drizzle schema with an existing Database (optional)

If you have an existing database schema on a Neon branch that you want to bring into your Drizzle schema.ts file, you can use the drizzle-kit pull command. This is useful to ensure your schema.ts aligns with the actual database state before you start defining migrations.

1. Ensure your drizzle.config.ts is configured for the target database.

   drizzle-kit pull will use the dbCredentials specified in your Drizzle configuration file to connect to the database. It will place the generated schema files into the out directory also specified in this configuration.

   A typical drizzle.config.ts might look like this:

   import type { Config } from 'drizzle-kit';
   import 'dotenv/config';

   export default {
     schema: './src/schema.ts', // Path to your main working schema file
     out: './drizzle', // `drizzle-kit pull` will place its output here. Migrations also go here.
     dialect: 'postgresql',
     dbCredentials: {
       url: process.env.DATABASE_URL_DEVELOPMENT!, // Use DATABASE_URL_PRODUCTION for production branch
     },
   } satisfies Config;

2. Add a pull script to package.json:

   {
     "scripts": {
       // ... other scripts
       "db:pull": "drizzle-kit pull"
     }
   }

   If you have separate configurations for development and production branches, you can create drizzle.config.dev.ts and drizzle.config.prod.ts and adjust the script accordingly. Refer to Applying Migrations to Neon Branches section for more details on how to set up these configurations.

   {
     "scripts": {
       // ... other scripts
       "db:pull:dev": "drizzle-kit pull --config=drizzle.config.dev.ts",
       "db:pull:prod": "drizzle-kit pull --config=drizzle.config.prod.ts"
     }
   }

3. Run the pull command:

   npm run db:pull
   # If using separate configurations for branches
   # npm run db:pull:dev # To pull schema from development branch
   # npm run db:pull:prod # To pull schema from production branch

   Drizzle Kit will connect to the database specified in your config's dbCredentials, read its schema, and generate corresponding Drizzle ORM schema definition files (schema.ts and potentially relations.ts) inside the out directory (e.g., ./drizzle/schema.ts).

4. Transfer schema code to your working file:

   • Navigate to the out directory specified in your drizzle.config.ts (e.g., ./drizzle).
   • Locate the generated schema.ts file (and, if present, relations.ts) created by drizzle-kit pull.
   • Copy the contents of schema.ts (for example, from ./drizzle/schema.ts).
   • Paste these contents into your main working schema file (such as src/schema.ts), replacing or merging with any existing definitions as needed.
   • If a relations.ts file was generated and is relevant to your schema, integrate its contents into your project's structure accordingly.

   ├ 📂 drizzle
   │ ├ 📂 meta
   │ ├ 📜 migration.sql
   │ ├ 📜 relations.ts ────────┐
   │ └ 📜 schema.ts ───────────┤
   ├ 📂 src                    │
   │ ├ 📂 db                   │
   │ │ ├ 📜 relations.ts <─────┤
   │ │ └ 📜 schema.ts <────────┘
   │ └ 📜 index.ts
   └ …

   This method enables schema management according to your preferred project organization, ensuring that Drizzle ORM functionalities, such as table relations, are consistent with your current database schema.

   For more details, refer to Drizzle Docs: Transfer code to your actual schema file

After this process, your src/schema.ts file will reflect the structure of your existing database branch, and you can proceed with managing future changes using Drizzle migrations.

Defining and applying Migrations

If you're defining your database schema from scratch, create it directly using Drizzle ORM syntax in your schema.ts file. Alternatively, if you've previously pulled an existing schema into schema.ts as described in Syncing Drizzle schema with an existing Database section, you can start modifying it to suit your application's needs.

Defining or Refining your schema

All schema definitions or modifications are made in your src/schema.ts file (or your chosen path, e.g., db/schema.ts as per your drizzle.config.ts) using Drizzle ORM's syntax.

For example, if you are starting a new schema or adding to an existing one, it might look like this:

import { pgTable, serial, text, timestamp, integer } from 'drizzle-orm/pg-core';

export const authors = pgTable('authors', {
  id: serial('id').primaryKey(),
  name: text('name').notNull(),
  bio: text('bio'),
  createdAt: timestamp('created_at').defaultNow().notNull(),
});

export const books = pgTable('books', {
  id: serial('id').primaryKey(),
  title: text('title').notNull(),
  authorId: integer('author_id').references(() => authors.id),
  publishedYear: integer('published_year'),
  createdAt: timestamp('created_at').defaultNow().notNull(),
});

This example defines two tables: authors and books, with a foreign key relationship between them. You can add more tables, columns, or relationships as needed.

Generating Migration files

Whenever you change your schema file (e.g., src/schema.ts), you need to generate SQL migration files that Drizzle Kit can use to apply these changes to your database.

1. Configure Drizzle for Migration generation.

   You should have a drizzle.config.ts file in your project root. A minimal drizzle.config.ts for generation could be:

   import type { Config } from 'drizzle-kit';
   import 'dotenv/config';

   export default {
     schema: './src/schema.ts', // Path to YOUR schema file
     out: './drizzle', // Output directory for migration files
     dialect: 'postgresql',
     dbCredentials: {
       url: process.env.DATABASE_URL_DEVELOPMENT!, // Or DATABASE_URL_PRODUCTION as needed
     },
   } satisfies Config;

   Adjust schema and out paths if your project structure is different.

2. Add a generation script to package.json:

   {
     "scripts": {
       // ... any existing scripts
       "db:generate": "drizzle-kit generate --config=drizzle.config.ts"
     }
   }

   Migration generation scripts are typically the same for both development and production branches, as their function is simply to generate SQL files based on the current schema. However, if you have specific needs, you can configure separate output directories and settings for each, which is useful for maintaining distinct migration histories or schemas.

   For example, you can create drizzle.config.dev.ts and drizzle.config.prod.ts for development and production branches respectively, and adjust the script accordingly:

   {
     "scripts": {
       // ... other scripts
       "db:generate:dev": "drizzle-kit generate --config=drizzle.config.dev.ts",
       "db:generate:prod": "drizzle-kit generate --config=drizzle.config.prod.ts"
     }
   }

3. Run migration generation:

   npm run db:generate
   # If using seperate configurations for branches
   # npm run db:generate:dev # To generate migrations for development branch
   # npm run db:generate:prod # To generate migrations for production branch

   This command compares your src/schema.ts with the state recorded from previous migrations (or an empty state if it's the first time) and generates new SQL files in the out directory (e.g., ./drizzle). These files contain the SQL commands needed to update your database schema.

Applying migrations to Neon Branches

You have two primary methods to apply these generated SQL migrations:

• Using Drizzle Kit's migrate command.
• Using a custom TypeScript script for more programmatic control.

Method 1: Using drizzle-kit migrate

Drizzle Kit can apply migrations directly from the command line. To target different Neon branches (development and production), you'll use separate Drizzle configuration files, each pointing to the respective branch's connection string.

1. Create drizzle.config.dev.ts for the development branch: This configuration will use DATABASE_URL_DEVELOPMENT.

   // drizzle.config.dev.ts
   import type { Config } from 'drizzle-kit';
   import 'dotenv/config';

   export default {
     dialect: 'postgresql',
     schema: './src/schema.ts', // Path to your main working schema file
     out: './drizzle', // Directory containing migration files
     dbCredentials: {
       url: process.env.DATABASE_URL_DEVELOPMENT!,
     },
   } satisfies Config;

2. Create drizzle.config.prod.ts for the production branch: This configuration will use DATABASE_URL_PRODUCTION.

   // drizzle.config.prod.ts
   import type { Config } from 'drizzle-kit';
   import 'dotenv/config';

   export default {
     dialect: 'postgresql',
     schema: './src/schema.ts', // Path to your main working schema file
     out: './drizzle', // Directory containing migration files
     dbCredentials: {
       url: process.env.DATABASE_URL_PRODUCTION!,
     },
   } satisfies Config;

3. Add drizzle-kit migrate scripts to package.json:

   {
     "scripts": {
       // ... other scripts
       "db:pull:dev": "drizzle-kit pull --config=drizzle.config.dev.ts",
       "db:generate:dev": "drizzle-kit generate --config=drizzle.config.dev.ts",
       "db:migrate:dev": "drizzle-kit migrate --config=drizzle.config.dev.ts",

       "db:pull:prod": "drizzle-kit pull --config=drizzle.config.prod.ts",
       "db:generate:prod": "drizzle-kit generate --config=drizzle.config.prod.ts",
       "db:migrate:prod": "drizzle-kit migrate --config=drizzle.config.prod.ts"
     }
   }

   Follow the Step-by-Step Migration Workflow section to learn how to apply these migrations to your development and production branches in a safe and structured manner.

   Preventing Accidental Production Migrations

   You may add additional confirmation prompts for production migrations to prevent accidental changes. For example here's a simple confirmation prompt for production migrations:

   {
     "scripts": {
       // ... other scripts
       "db:migrate:prod": "read -r -p 'Are you sure you want to apply migrations to PRODUCTION BRANCH? (y/N) ' response && [[ \"$response\" =~ ^[Yy]$ ]] && drizzle-kit migrate --config=drizzle.config.prod.ts || echo 'Production migration cancelled.'"
     }
   }

   This script will prompt the user for confirmation before applying migrations to the production branch. If the user types 'y' or 'Y', it will proceed with the migration; otherwise, it will cancel the operation.

Method 2: Using a custom migration script

For scenarios demanding finer-grained control over the migration process—like implementing custom logging, executing pre/post-migration hooks (such as temporarily pausing application services), or seamlessly integrating with complex CI/CD pipelines—a custom TypeScript script leveraging Drizzle ORM's migrator functions is the recommended approach.

The script provided below serves as a practical starting point. It outlines a basic structure that you can easily adapt and enhance with custom logging, error handling, and other logic specific to your migration workflow.

1. Create src/migrate.ts:

   import { drizzle } from 'drizzle-orm/neon-http';
   import { neon } from '@neondatabase/serverless';
   import { migrate } from 'drizzle-orm/neon-http/migrator';
   import 'dotenv/config';

   async function runMigrations(databaseUrl: string | undefined, branchNameForLog: string) {
     if (!databaseUrl) {
       console.error(`Error: Connection string for ${branchNameForLog} branch is not defined.`);
       console.error(
         `Please ensure DATABASE_URL_${branchNameForLog.toUpperCase()} is set in your .env file.`
       );
       process.exit(1);
     }

     const sql = neon(databaseUrl);
     const db = drizzle(sql);

     console.log(`Applying migrations to ${branchNameForLog} branch...`);
     try {
       await migrate(db, { migrationsFolder: './drizzle' }); // Ensure this path matches your 'out' directory
       console.log(`Migrations applied successfully to ${branchNameForLog} branch.`);
     } catch (error) {
       console.error(`Error applying migrations to ${branchNameForLog} branch:`, error);
       process.exit(1);
     }
   }

   async function main() {
     const targetBranchArg = process.argv[2]?.toLowerCase(); // Expect 'development' or 'production'

     if (
       !targetBranchArg ||
       (targetBranchArg !== 'development' && targetBranchArg !== 'production')
     ) {
       console.error('Invalid target branch specified.');
       console.error('Usage: npm run db:migrate:<dev|prod>:script');
       process.exit(1);
     }

     let dbUrl;
     let branchNameForLog;

     if (targetBranchArg === 'development') {
       dbUrl = process.env.DATABASE_URL_DEVELOPMENT;
       branchNameForLog = 'Development';
     } else {
       // 'production'
       dbUrl = process.env.DATABASE_URL_PRODUCTION;
       branchNameForLog = 'Production';
     }

     await runMigrations(dbUrl, branchNameForLog);
   }

   main();

2. Add custom script migration commands to package.json:

   {
     "scripts": {
       // ... other scripts (generate, pull, kit migrates)
       "db:migrate:dev:script": "tsx ./src/migrate.ts development",
       "db:migrate:prod:script": "tsx ./src/migrate.ts production"
     }
   }

The Step-by-step migration workflow

Depending on your workflow, you can choose to use either the Drizzle Kit migration commands or the custom script method. The steps below outline the general process for applying schema changes using either method.

To maintain a clean and safe migration process between your development and production branches, follow these steps:

1. Modify schema: Make your desired changes in your schema file (e.g., src/schema.ts).
2. Generate migrations: Run npm run db:generate. This creates new SQL files in your out directory (e.g., ./drizzle).
3. Apply to development Branch: Choose one of your configured methods:
   • Using Drizzle Kit: npm run db:migrate:dev
   • Using custom script: npm run db:migrate:dev:script
4. Verify on development:
   • Thoroughly test the changes on your development branch.
   • Connect using psql, the Neon SQL Editor, or your preferred DB tool to inspect the schema and data.
   • If your application connects to this branch for development, test its functionality.
   • Run any relevant test suites against the development branch.
5. Apply to production Branch: Once confident that the migrations are correct, safe, and tested:
   • Using Drizzle Kit: npm run db:migrate:prod
   • Using custom script: npm run db:migrate:prod:script
   • For enhanced reliability and consistency, integrate this migration task into your CI/CD pipeline. This automates the application of migrations during deployments, significantly reducing the need for manual, error-prone changes to your production database.
6. Verify on production: Perform checks on your production environment to ensure the schema was updated as expected and that your application remains healthy.

Handling subsequent schema changes

The workflow described above (Modify Schema -> Generate Migrations -> Apply to Dev -> Verify on Dev -> Apply to Prod -> Verify on Prod) should be repeated for every new set of schema modifications. This ensures that each change is isolated, tested, and safely deployed without impacting the stability of your production environment.

To further enhance your development and testing lifecycle, consider extending this branching model. Utilize dedicated branches for individual developers (e.g., dev1, dev2), QA teams (qa), or staging environments (staging). This approach provides even greater isolation for changes and allows for thorough testing before features are promoted to production.

Neon branches enhance your Drizzle migration workflow without the cost of full database duplication. Billing is based on unique data storage. If you create a development branch from a 10 GB production branch, it initially shares the same data. As you introduce schema changes and add data to development (say, 1 GB of new or modified data), only this delta contributes to additional storage costs (totaling 11 GB in this example). This model replaces the cumbersome and costly traditional setup of maintaining separate database servers, manually keeping them in sync, and navigating the complexities of migrating across these isolated instances.

Advanced strategies for managing schema evolution

Beyond the workflow, Neon's branching capabilities, combined with strategic practices, can further optimize your schema migration process, especially for complex changes or long-lived development cycles.

Keeping Branches Fresh and Aligned

Over time, your development branch can diverge significantly from production, or accumulate a long history that might become less relevant. Neon's Reset from parent feature allows you to reset a branch to its parent state, effectively bringing it back in line with the latest production schema and data.

Why reset Your development Branch?

1. Start fresh for new features: Before beginning a significant new feature or a complex schema change, resetting your development branch from production ensures you're working against the most current production schema and data. This avoids conflicts or surprises later in the development cycle.
2. Prevent history window issues: Neon retains a history of changes (Write-Ahead Logs or WAL) for each branch, enabling features like Point-in-Time Restore. For long-lived development branches with many changes, this history can grow. While Neon manages storage efficiently, resetting a development branch effectively starts its history anew from the parent's current state. This can be useful if a branch's history is no longer needed or if you want to ensure it's within a more recent recovery window relative to its new baseline.
3. Simplify and clean up: If a development branch has gone through many experimental changes or aborted features, a reset provides a clean slate, making it easier to manage.
4. Maintain a consistent baseline for testing: For QA or staging branches, regularly resetting them from production ensures that testing is always performed against a known, reliable baseline that accurately reflects the production environment.

How to Use "Reset from Parent":

You can reset a branch using the Neon Console or the Neon CLI. For example, to reset your development branch:

neonctl branches reset development --parent production

Implementing Zero-Downtime Complex Migrations with the Expand-Contract Pattern

Some schema changes are inherently "breaking" if applied directly – for example, renaming a critical table or column, changing a column's data type in an incompatible way, or splitting a column into multiple new ones. Applying such changes directly to a live production database can lead to downtime or errors as your application might temporarily be incompatible with the schema.

The Expand-Contract pattern (also known as parallel change) is a robust strategy to perform these types of complex schema migrations with zero or minimal downtime. It involves a series of phased, backward-compatible changes to both your database schema and application code.

The pattern generally involves these phases:

1. Expand (Phase 1 - Additive Changes):

   • Schema: Add the new schema elements (new tables, new columns) alongside the old ones. For example, if renaming users.email_address to users.email, you would add the new email column but keep email_address for now. New columns should typically be nullable or have a default value to not break existing write operations.
   • Application: Modify your application code to write to both the old and new schema elements (dual writes). It should continue to read from the old schema element as the source of truth. This ensures data consistency during the transition.
   • Data Backfill: Migrate existing data from the old schema elements to the new ones. This can be a one-time script or a background process.

2. Migrate (Phase 2 - Shift Read Source):

   • Application: Update your application code to read from the new schema elements. Writes continue to go to both old and new elements.
   • Verification: Thoroughly test that the application works correctly with the new schema elements as the read source.

3. Contract (Phase 3 - Cleanup):

   • Application: Modify your application code to stop writing to the old schema elements. Now, reads and writes only use the new schema.
   • Schema: Remove the old, now unused, schema elements (old tables, old columns) from your database. This is a Drizzle migration that drops the old structures.

How Neon Branches support the Expand-Contract Pattern:

Neon branches significantly simplify testing and validating each phase of an Expand-Contract migration:

• Isolated Phase Testing: You can perform each schema change (e.g., adding a new column, backfilling data, dropping an old column) on your development branch (or a dedicated feature branch).
• Application compatibility checks: Deploy application code changes corresponding to each phase against this development branch to ensure compatibility.
• Staging validation: Before applying changes to production, you can use a staging branch (which could be a reset of production + the current migration phase) to perform end-to-end testing.

Example scenario: Renaming a column (published_date to publication_date on the books table)

Let's walk through how you would test and implement this using Neon branches, Drizzle, and your application.

Phase 0: Preparation

• You have your production Neon branch.
• You have a development Neon branch (ideally recently reset from production or a fresh branch for this feature).
• Your application has separate deployment environments (e.g., a dev or staging environment pointing to your development Neon branch, and a production environment pointing to your production Neon branch).

Testing the Full Expand-Contract Cycle on the development environment:

1. Expand Phase (on development branch & dev app environment): _ Schema change: In your schema.ts, add the new publication_date DATE column to the books table. _ Generate & apply migration:

npm run db:generate
npm run db:migrate:dev

This applies the "add column" migration to your development Neon branch.

• Application code update (dev version):

  • Modify your application code so that when creating or updating a book, it writes the date to both the old published_date and the new publication_date columns.
  • Ensure all read operations for this date still use the old published_date column as the source of truth.

• Deploy & test (dev application): Deploy this updated application version to your dev environment (pointing to the development Neon branch). Test create/update operations and verify data is written to both columns. Verify reads are still correct.

• Data Backfill (on development branch): Run a script against your development Neon branch to populate the new publication_date column for all existing books:

  UPDATE books SET publication_date = published_date;

  Verify the backfill on the development branch.

2. Migrate Phase (on development branch & dev app environment): _ Application code update (dev version): _ Modify your application code to now read from the new publication_date column.

• Writes should ideally continue to go to both published_date and publication_date for a period to ensure data integrity and easier rollback during this phase if needed. Alternatively, if confident, writes could switch to only the new column.
• Deploy & Test (dev application): Deploy this updated application version to your dev environment. Thoroughly test all functionalities that read or display this date. Ensure data consistency.

3. Contract phase (on development branch & dev app environment): _ Application code update (dev version): _ Modify your application code to stop writing to the old published_date column. All reads and writes now exclusively use publication_date. _ Deploy & test (dev application): Deploy this application version to your dev environment. Confirm all operations work as expected using only the new column. _ Schema shange: In schema.ts, remove the old published_date column from the books table. * Generate & apply migration:

npm run db:generate
npm run db:migrate:dev

This applies the "drop column" migration to your development Neon branch.

• Final Test (dev application): Re-test your application thoroughly in the dev environment to ensure everything functions correctly after the old column is dropped.

Rolling out validated changes to production (Phased Approach):

Once the entire Expand-Contract cycle (all schema changes and corresponding application code updates for each phase) has been successfully validated on your development branch and dev application environment, you can proceed to roll out these changes to production in the same phased manner. Each step involves deploying a corresponding production-ready version of your application code alongside the schema migration.

Here's an illustrated diagram of the Expand-Contract pattern:

While the Expand-Contract pattern requires more distinct steps and careful coordination between schema and application changes, it is invaluable for maintaining uptime and data integrity during significant schema alterations in live production systems. Drizzle helps manage the schema definition and SQL migration generation for each database step, and Neon branches provide the safe, isolated environments essential for testing these intricate transitions thoroughly before they reach production.

Conclusion

Using Neon's database branching with Drizzle ORM offers a powerful and safe methodology for managing your PostgreSQL schema migrations. By systematically developing and testing schema changes on an isolated development branch before applying them to your production environment, you significantly reduce deployment risks, enhance team collaboration, and ensure a smoother evolution of your application's database backend.

Resources

• Drizzle ORM Documentation
• Migrations with Drizzle Kit
• Neon Branching Documentation
• Neon Serverless Driver
